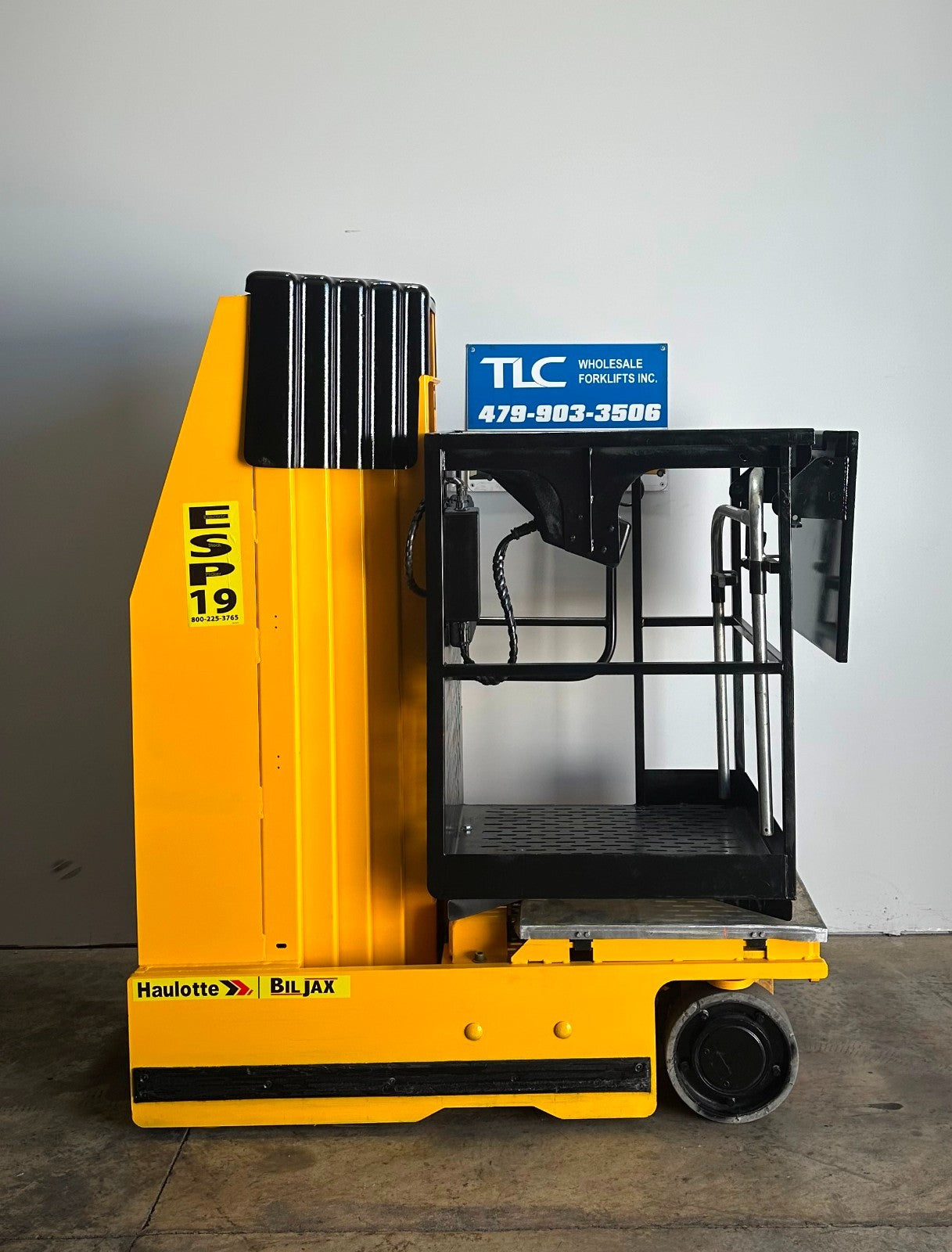

Table 2-1. Specifications Rated Platform Load
|
450 lb (204 kg) total including operator [1 person + materials not to exceed 450 lb (204 kg)]
|
|

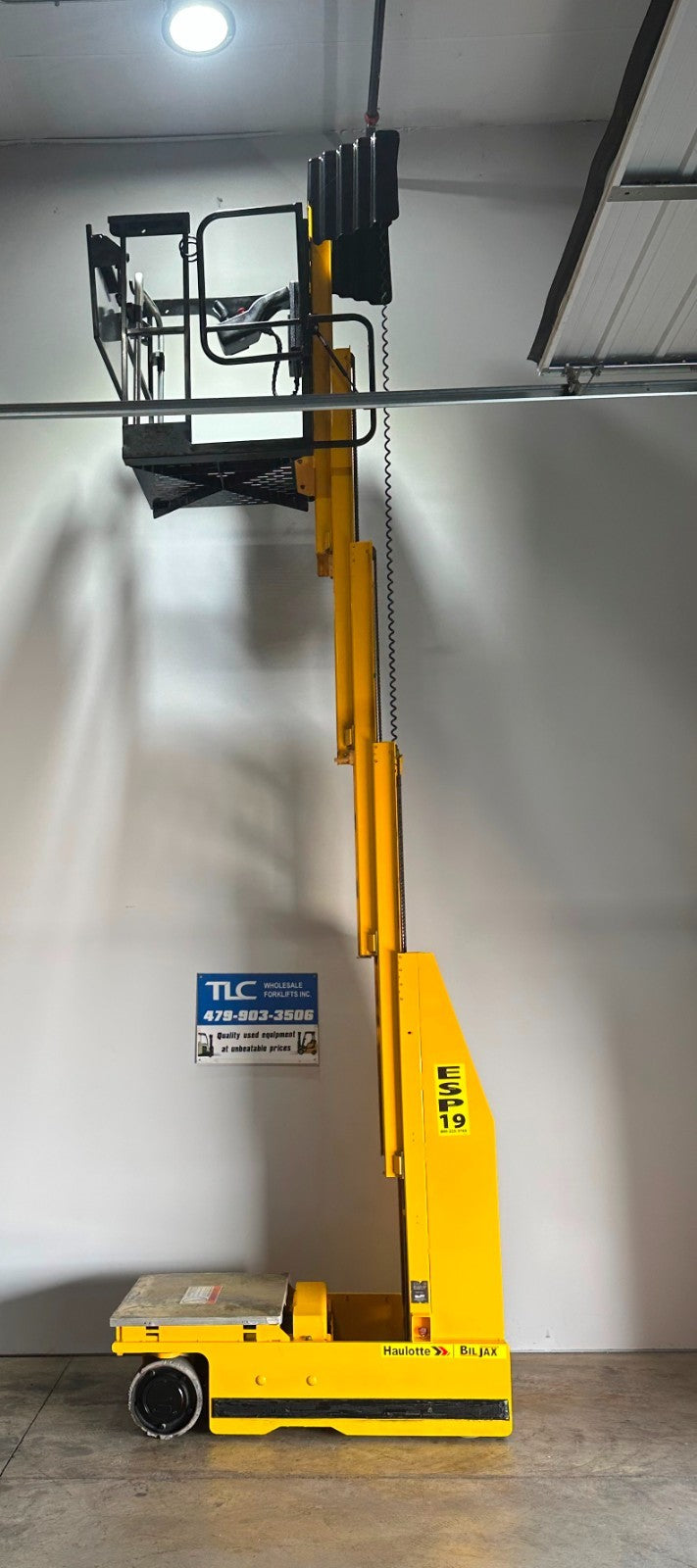

Extended Platform Height
|
19 ft 3 in (5.9 m)
|
|
Retracted Platform Height
|
20 in. (50.8 cm)
|
|
Platform Dimensions
|
30 in. W x 30 in. L x 42 in. H (0.76 m x 0.76 m x 1.07 m)
|
|
Base Dimensions
|
30-1/2 in. W x 63 in. L x 80 in. H (0.77 m x 1.60 m x 2.03 m)
|
|
Gross Shipping Weight
|
2900 lb (1315 kg)
|
|
Platform Lift Time
|
20 seconds empty, 32 seconds loaded
|
|
Platform Retraction Time
|
22 seconds empty, 22 seconds loaded
|
|
Platform Lift Rate
|
Lift platform empty: 0.66 ft (0.3 m)/sec. Lift platform loaded: 0.42 ft (0.19 m)/sec.
|
|
Hydraulic System Pressure
|
1200 psi empty, 2100 psi loaded
|
|
Travel Speeds (Maximum)
|
Lift platform lowered: 2.5 mph Lift platform raised: 0.5 mph
|
|
Power Source
|

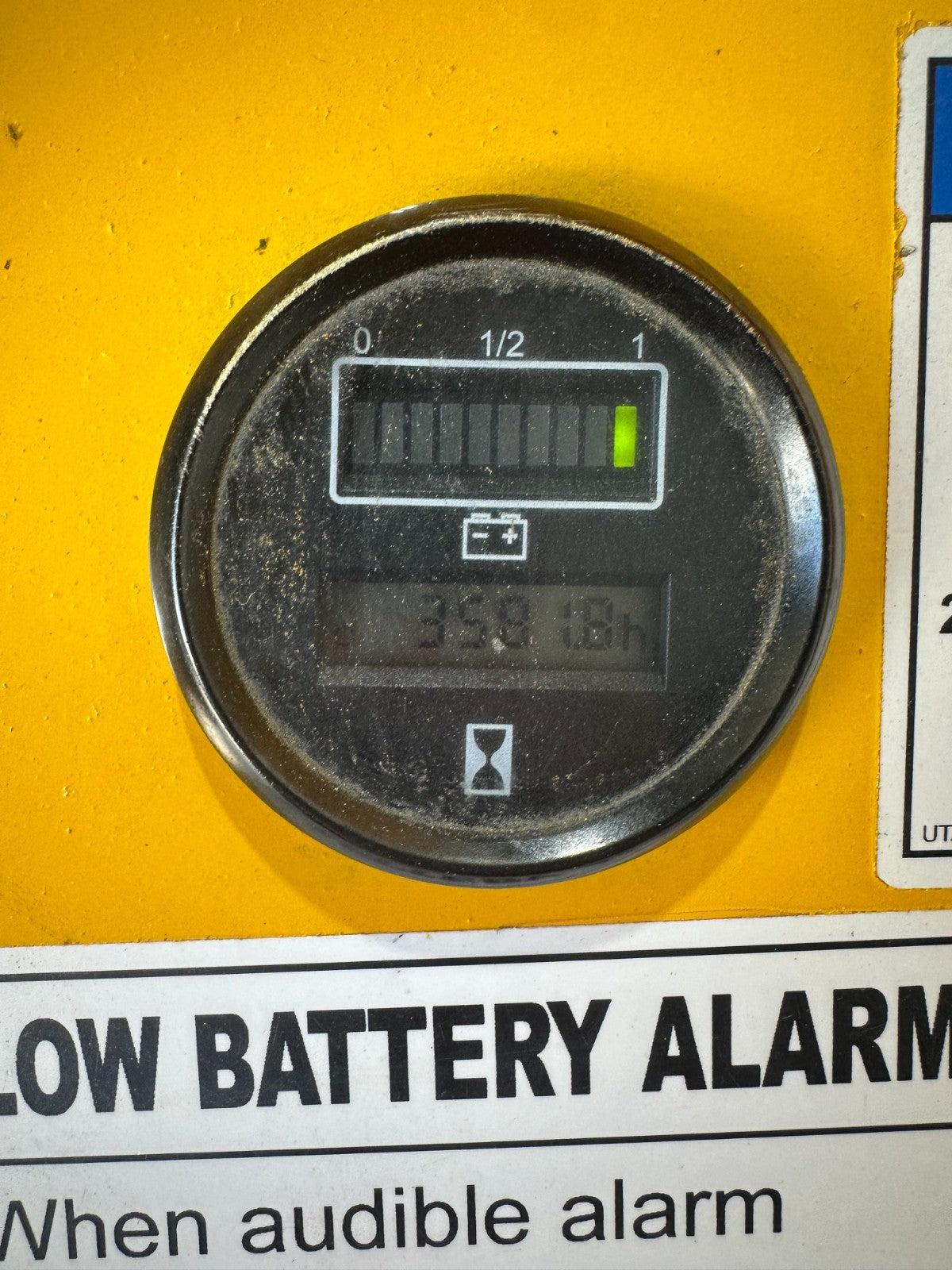

DC – two in-series 12 volt maintenance-free batteries
|
